Tray Dryers
For drying seeds and agro products (ranging from 600 CMH to 1,800 CMH and engineered above)
Our Airgineers Can Help You Select The Right Product!
Contact Us
For drying seeds and agro products (ranging from 600 CMH to 1,800 CMH and engineered above)
Our Airgineers Can Help You Select The Right Product!
Contact Us
CNC-fabricated unit with powder-coated finish
Non-flammable rotor with organics < 2%
High temperature safety thermostat cut-out
Reactivation cooldown safety device
Bry-Air® Seed Dryers, also known as Tray Dryers dry and preserve seeds, food products, spices, etc., without affecting their quality.
For instance, seeds need to be preserved for short term and long term for future use, replanting, as well as research. Seed ageing and death occurs over the time.
However, it is possible to ensure long survival of seeds by controlling temperature and relative humidity. Reduction in temperature and moisture content ensures increased seed life.
Seeds can be preserved for long period by lowering their moisture content to around 5%. This is achieved by drying the seeds. Conventionally, seeds are dried at elevated temperatures which destroy their germination potential.
Bry-Air Seed Dryers, based on the state-of-the-art Desiccant Dehumidification Drying Technology, dry the seeds to the required level in approximately eight (8) hours without affecting their quality.
Seeds dried prior to storage can regain moisture and suffer damage if not stored under controlled conditions. Dried seeds can be preserved for years in dehumidified stores without loss of germination potential.
Bry-Air Dehumidification based Seed Dryers and Storage Systems are being used extensively world over by commercial and plant breeding organisations including the Food and Agriculture Organization (FAO).

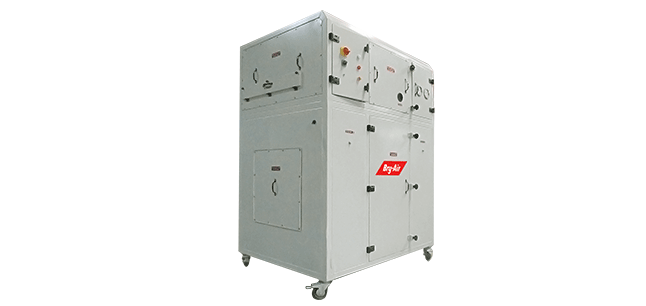

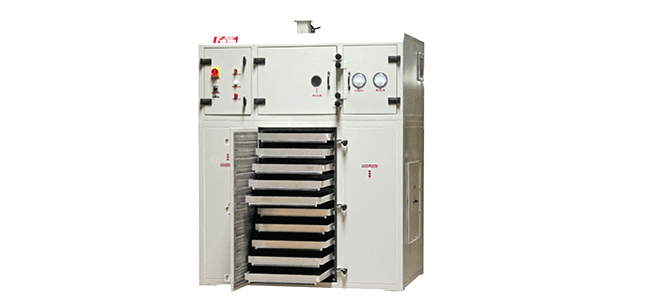

Bry-Air Tray Dryer consists of a chamber with trays for keeping the products to be dried and a Desiccant Dehumidifier which continuously feeds dry air to the chamber. This unique air distribution pattern optimises drying capacity and time.
Available in three models, Bry-Air Tray Dryers’ drying capacities range from 180 KG to 540 KG per 8 hrs.
|
MODELS
|
PROCESS AIR FLOW
CMH |
PRPCESS
ESP (P.A.) |
PROCESS
MOTOR (KW) |
REACT
AIR FLOW CMH |
REACT
ESP (P.A.) |
REACT
MOTOR (KW) |
REACT
HEATER (KW) |
SEED
DRYING KG/Hr |
TRY SIZE / QTY.
M3 |
DIMENSION
|
POWER*
REQD. |
APPROX.
WEIGHT Kg. |
||
|
A
MM |
B
MM |
C
MM |
||||||||||||
|
FSD-600
|
600
|
750
|
1.1
|
200
|
750
|
0.37
|
7.2
|
180
|
0.03/10
|
1700
|
2225
|
1200
|
415 /3/ 50
|
465
|
|
FSD-1200
|
1200
|
750
|
1.1
|
400
|
750
|
0.75
|
14.4
|
360
|
0.03/20
|
2350
|
2225
|
1200
|
415 /3/ 50
|
630
|
|
FSD-1800
|
1800
|
850
|
1.5
|
600
|
750
|
0.76
|
21.6
|
540
|
0.03/30
|
3000
|
2225
|
1200
|
415 /3/ 50
|
745
|
** Note: Other voltage available are 200/220/240/380/440/460 VAC, 3Ph, 50/60 Hz
Bry-Air Seed Dryers utilize cutting-edge Desiccant Dehumidification Technology to effectively dry seeds to the desired moisture level in approximately eight hours, while preserving their quality.
At Bry-Air, we have a team of trained, experienced Airgineers, BryCare® Airgineers®, who look after the service and repair of all models of Bry-Air products even after Sale. They ensure the product is at its best so that you can focus on your operations and production.
Yes, apart from seeds, Bry-Air Tray Dryers can be used to dry food products, spices, etc., without affecting their quality at the desired moisture level, while preserving their quality.
Bry-Air Tray Dryer consists of a chamber with trays for keeping the products to be dried and a Desiccant Dehumidifier which continuously feeds dry air to the chamber. This unique air distribution pattern optimises drying capacity and time.
