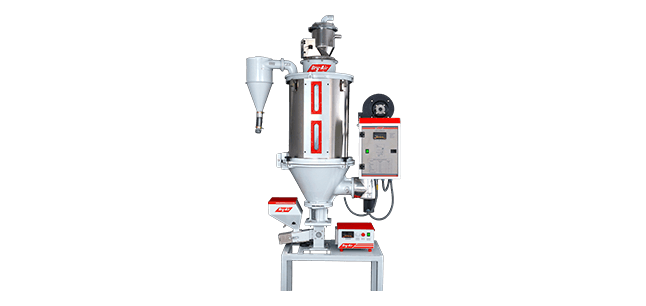

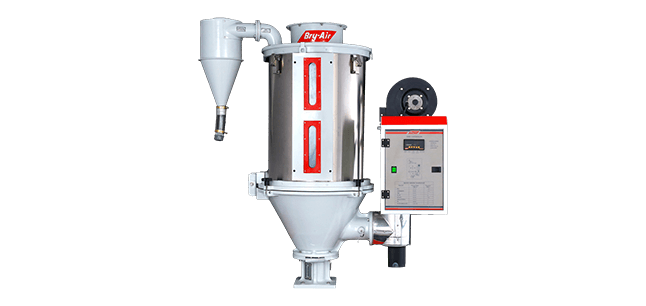

Ideal for drying non-hygroscopic resins, the Bry-Air EcoDry Hopper (Hot Air) Dryer is a compact and rugged hopper packaged with a blower, stainless steel tubular heaters and automatic temperature controller. Designed and engineered for easy handling, they are a perfect match for your plastics processing machine with the flexibility to either be machine mounted or installed at the side of the moulding machine. The plastic resins, to be dried, can either be loaded manually or with the Bry-Air Auto Loader.

Available in 6 standard models with the capability to dry 13 to 400 kg/hr of non-hygroscopic resins, they are a superior alternative to oven drying in performance, reducing energy and labour inputs.

Hot Air Dryer – HAD (L) Series are also available in larger capacity, more than 400 kg/hr.

Advantages

Assured speedy and uniform drying
Better surface finish of moulder
Cleaner shop floor
Improved quality
High output and profitability
Power saving and reduced material handling

All HAD Series dryer comes standard with:

Aluminium casting cone and cylinder in SS for long life and avoid corrosion
Stainless steel tubular heaters for long life
Micro PLC temperature controller
Digital display of actual temperature against set temp
Directly machine-mounted/stand-mounted
Insulated heating cylinders
Sight glass for checking material level
Swivelable cylinder for models up to HAD 300 for easy cleaning
Cool-down mode avoids material lump formation while shutdown
Discharge outlet for easy cleaning of material during a material change
High-pressure blower for sufficient airflow
Special SS shade separator for uniform air distribution
Cyclone separator for a clean and dust-free environment
Safety cut-off on RTD failure
Loader mounting arrangement for automatic loading*
Adjustable damper for air control***
Clean out window***
Blower overload protection for 3-phase model
Slide gate for open/close the material
Safety cut-off on Temperature Low/Overshoot
Drying temperature 120॰C max. as standard
Global leader Siemen make electrical switchgear for safety & reliability

* Optional in HAD-13 & HAD-25

*** Available in HAD-400 and above only

Specifications for HAD Series Dryer

Model	Volume (ltr)	Total Load KW at 415/3/50	Heater Capacity (KW) 120°C	Blower Capacity (KW)	Dimensions (mm)			Mounting Detail (mm)					Extra Heater Capacity (KW) 180°C	Approx. Shipping Weight (Kg)
Model	Volume (ltr)	Total Load KW at 415/3/50	Heater Capacity (KW) 120°C	Blower Capacity (KW)	H	H1	DIA	A	B	C	D	E	Extra Heater Capacity (KW) 180°C	Approx. Shipping Weight (Kg)
**HAD-13	25	2.1	2.1	0.08	780	705	273	120	50	80	60	10	2.1	37
**HAD-25	50	2.7	2.7	0.08	990	1000	350	150	52	90	75	10	2.7	55
HAD-50	100	4.0	3.9	0.18	1155	1145	432	160	60	94	80	10	3.9	72
HAD-100	200	6.5	6	0.26	1400	1375	555	222	90	135	111	10	6.0	105
HAD-200	400	11	10	0.26	1690	1570	701	280	106	167	140	10	10.2	140
HAD-300	600	11	10	0.26	2190	2070	701	280	106	167	140	10	10.2	170
HAD-400	800	20.5	20	0.75	2230	2078	852	304	126	180	152	10	19.8	220

All data subject to change without notice

Specifications for HAD (L) Series Dryer

Model	Volume (ltr)	Total Load KW at 415/3/50	Heater Capacity (KW)	Blower Capacity (KW)	Dimension (mm)				Electrical Connection Full Load (amp)	Approx. Weight (Kg)
Model	Volume (ltr)	Total Load KW at 415/3/50	Heater Capacity (KW)	Blower Capacity (KW)	H	H1	H2	D	Electrical Connection Full Load (amp)	Approx. Weight (Kg)
HAD-600	1200	26.25	24	2.25	2050	460	800	967	39	575
HAD-800	1600	30.75	27	3.75	2450	420	840	967	45	665
HAD-1000	2000	32.25	30	2.25	2150	975	805	1272	47	800
HAD-1500	3000	55.50	48	7.50	2300	980	800	1272	81	875
HAD-2000	4000	65.60	60	5.60	1850	1230	800	1576	94	1150
HAD-2500	5000	85.50	78	7.50	1750	1400	800	1780	123	1250

All data subject to change without notice

Frequently Asked Questions

What are the key advantages of using Hot Air Dryers for plastic processing?

The Hot Air Dryers – HAD Series ensures speedy and uniform drying, resulting in better surface finish, a cleaner shop floor, improved quality, high output, profitability, and energy savings. It also reduces labor inputs, making it a superior alternative to oven drying.

What is the range of the Hot Air Dryers?

The HAD Series has a capacity to dry 13-400 kg/hr of non-hygroscopic resins, making them ideal for efficiently drying this type of plastic material. HAD (L) Series – Hot Air Dryer are also available in larger capacity, more than 400 kg/hr.

What standard features are included in all HAD Series Dryers?

Standard features include aluminium casting cone and stainless steel cylinder for corrosion resistance, micro PLC temperature controller, digital display of actual temperature, insulated heating cylinders, sight glass for material level checking, and a high-pressure blower for sufficient airflow.

What safety and reliability features are integrated into the HAD Series?

The HAD Series includes safety features such as a safety cut-off on RTD failure, blower overload protection for 3-phase models, slide gate for material control, and safety cut-off on temperature low/overshoot. Siemens make electrical switchgear is used for enhanced safety and reliability.
