DataCenter Air Purifier – DAP Series
Honeycomb filter based gas phase filtration system (ranging from 500 CFM to 2000 CFM)
Our Airgineers Can Help You Select The Right Product!
Contact Us
Honeycomb filter based gas phase filtration system (ranging from 500 CFM to 2000 CFM)
Our Airgineers Can Help You Select The Right Product!
Contact Us
Advanced Honeycomb Chemical Filter
Self-Contained and Portable
Energy Efficient Design
Easy Maintenance and Servicing
Bry-Air DataCenter Air Purifier (DAP), fitted with Data Center Air Filters, is a custom-designed solution for data centres to shield electronic equipment from the threat of electronic corrosion and abrupt failures. Threat in data centres caused by corrosive gases and particulate contaminants emerging from the nearby industrial areas, landfill sites and open drains such as:
PM10 PM5 NOx SOx Cl2 NH3 O3 HF VOCs H2S
Bry-Air DataCenter Air Purifier is manufactured to the highest quality, reliability and ecological standards to control damage. It is a self-contained, standalone, movable unit that purifies and re-circulates the air in an enclosed space.
Bry-Air DataCenter Air Purifier houses a revolutionary Honeycomb Chemical Filter which is the heart of the system. This next-generation revolutionary new medium is a building block of our new custom-designed solution for data centres. Bry-Air macroporous desiccant formed honeycomb matrix filter has a high bulk density. It has very high structural strength as well as adsorption capacity. This honeycomb matrix technology not only reduces the size of DAP but also increases its efficiency and life while reducing energy bills. All this provides a much higher capacity chemical filter with a much longer mean time between replacements (MTBR).

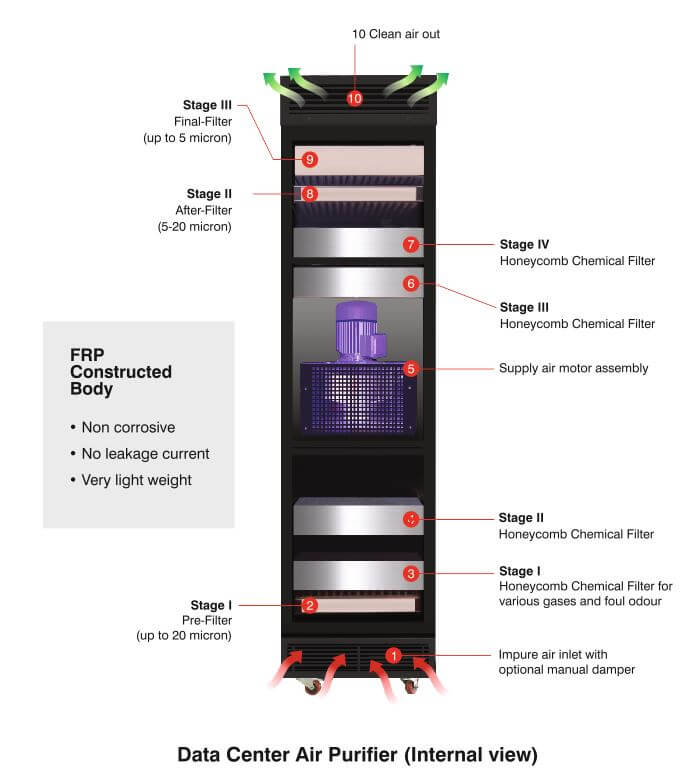

Bry-Air Data Center Air Purifier works in three stages. At stage I, the contaminated laden air enters through the bottom grill and air is pre-filtered from larger particulates. At stage II, it is made to pass through the multiple beds of DRISORBTM chemical filters. The corrosive gases are captured and neutralised in the filter by an adsorption and chemisorption process. At stage III, air is filtered again to remove sub-micron particulates. Eventually, the clean air is released from the top.
Bry-Air purification systems remove both organic and inorganic contaminants from the air and supply air free of contaminant gases to the controlled environment. It also reduces energy consumption because of very low-pressure drop over traditional media and aids to meet ANSI/ISA-71.04-2013 standard in data centres.
|
Model
|
Air Flow
|
ESP
|
Motor
|
Power Required
|
Total Weight
|
|
|
CMH
|
CFM
|
Pa
|
KW
|
VAC/Φ/Hz
|
Kg
|
|
|
DAP-500-2
|
850
|
500
|
250
|
0.75
|
415/3/50
|
165
|
|
DAP-500-4
|
850
|
500
|
250
|
1.12
|
415/3/50
|
180
|
|
DAP-1000-2
|
1700
|
1000
|
250
|
1.12
|
415/3/50
|
205
|
|
DAP-1000-4
|
1700
|
1000
|
250
|
1.5
|
415/3/50
|
225
|
|
DAP-1500-2
|
2550
|
1500
|
250
|
2.24
|
415/3/50
|
260
|
|
DAP-1500-4
|
2550
|
1500
|
250
|
3.73
|
415/3/50
|
290
|
|
DAP-2000-2
|
3400
|
2000
|
250
|
3.73
|
415/3/50
|
320
|
|
DAP-2000-4
|
3400
|
2000
|
250
|
3.73
|
415/3/50
|
360
|
Standard variants of Bry-Air DataCenter Air Purifier are available in 850-3400 CMH (500-2000 CFM) which can be customised based on the requirement.
Yes, you can install the Bry-Air DataCenter Air Purifier (DAP) in control rooms. The Bry-Air DataCenter Air Purifier is designed to provide air purification and contaminant removal in various controlled environments, including data centres and control rooms. Installing it in a control room can help maintain a clean and contaminant-free air supply, which is essential for the smooth operation of sensitive electronic equipment and for maintaining a comfortable and healthy working environment for personnel.
Bry-Air DataCenter Air Purifier (DAP) uses a revolutionary Honeycomb Chemical Filter as its primary filtering component. It uses either 2 or 4 filters upon which it is termed as 2 stage and 4 stage DAP.
Yes, you can replace the filters of the Bry-Air DataCenter Air Purifier (DAP). Filters within the DAP are designed to be replaced when needed. Regular filter replacement is important to maintain the efficiency and effectiveness of the gas phase filtration system, ensuring it continues to provide clean and contaminant-free air to your data centre or controlled environment.
Uptime in a data center refers to the amount of time that a data center’s infrastructure and services are operational and available to users, typically measured as a percentage of total time. It represents the reliability and availability of the data center’s resources, with higher percentages indicating better reliability and minimal downtime.
Bry-Air DataCenter Air Purifier (DAP) can effectively eliminate corrosive gases within an enclosed space. It will not work properly in the outdoor environment.
