BryShield
Compact and ceiling-mounted gas phase filtration system (100 and 250 CFM models available)
Our Airgineers Can Help You Select The Right Product!
Contact Us
Compact and ceiling-mounted gas phase filtration system (100 and 250 CFM models available)
Our Airgineers Can Help You Select The Right Product!
Contact Us
Innovative Air Filtration
Aesthetic Design
Energy Efficient
No Noise Pollution

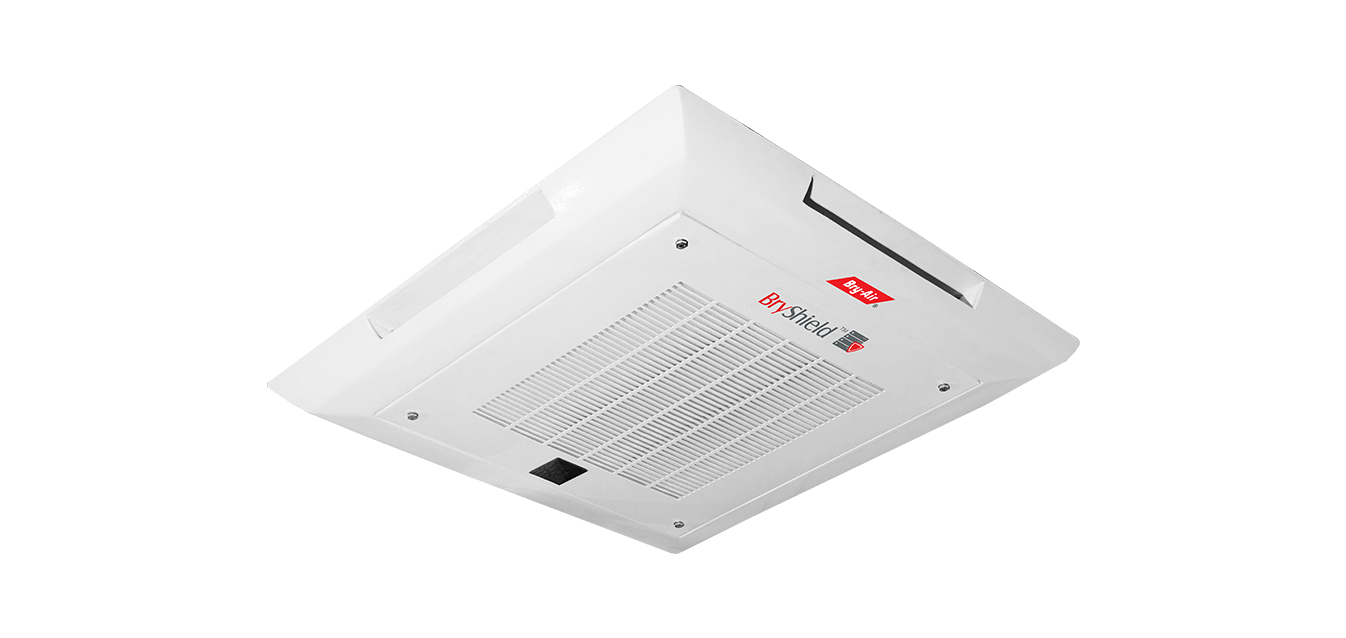

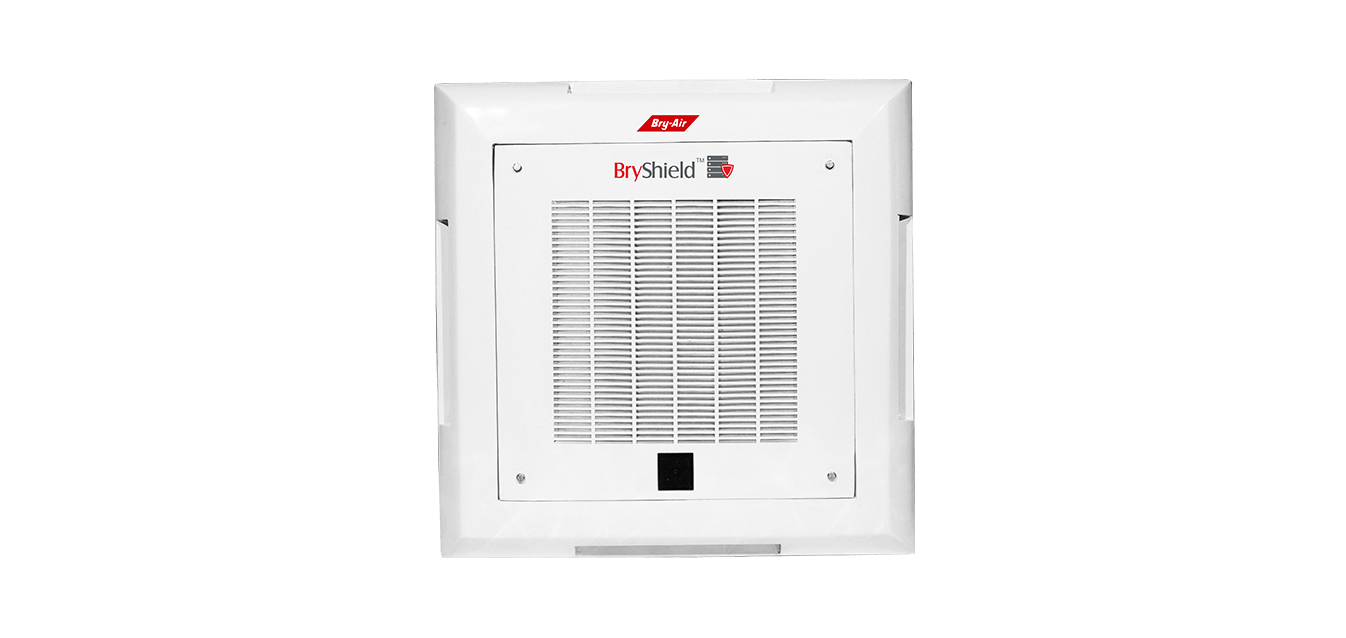

BryShield server room air filtration system is a first of its kind, innovative air filtration system that prevents electronic corrosion by removing gaseous and particulate contaminants from the air. This aesthetically designed remote controlled system easily fits into the false ceiling just like a cassette AC. It is especially relevant for small servers or control rooms.
Servers are sensitive electronic equipment that are very susceptible to electronic corrosion which leads to server failure and downtime. Recent statistics state that 75% of microelectronic failure is caused due to electronic corrosion. Servers house important information, and downtime of mere seconds can lead to huge losses. Especially in the present-day world, where the digital landscape forms the backbone of every business.
The problem arises with the poor air quality in most cities and industrial areas, especially worse in areas with close proximity to landfill sites, sewage drains and excess vehicular exhaust. Frequent opening of doors and windows for movement or ventilation, lead to more unfiltered outdoor air coming into the room which adds to the problem.
When air with toxic gases like NO2, VOCs, Cl2, H2S, SOx etc. comes in contact with humidity, it creates acid-like formation which causes electronic corrosion.
Precision air-conditioning does not solve the problem as it does not remove the gaseous contaminants from the air.
BryShield uses Bry-Air’s patented technology of Honeycomb Chemical Filters – DRISORB™. The macro-porous desiccant based honeycomb matrix filters have a high bulk density, structural strength and adsorption capacity. They completely neutralize all the toxic gases and give out clean air. These filters last over a year and are very easy to replace.
BryShield is ideal for small server rooms, control rooms, and electronic equipment rooms where the indoor environment is affected by various pollutants. Some of the key application industries include information and technology, banks and financial organizations, and telecom sites. It is also used in industries such as R&D, UPS, PLC rooms, and MRI rooms/CT scan rooms in healthcare facilities.
Our Gas Phase Filtration systems customised for the server rooms come with the deep understanding and expertise of over 58 years of experience in providing quality air solutions across various industries.
BryShield functioning consists of a 3 stage process. In stage I, the contaminant-laden air enters through the bottom grill and air is pre-filtered from large particulates. It is made to pass through the multiple beds of DRISORBTM honeycomb chemical filters. The corrosive gases are captured and neutralised in the filter by an adsorption and chemisorption process. At stages II and III, air is filtered again to remove sub-micron particulates. Eventually, the clean air is released from the sides.
BryShield ensures smooth functioning and longevity of sensitive, expensive equipment. It also ensures consistent uptime through shielding the electronic equipment from corrosive gases. It is available in 2 models BryShield-100 and BryShield-250 and both are lightweight. It helps meet the ANSI/ISA-71.04-2013 standard in data centres.
|
Model
|
Air Flow
|
ESP
|
Motor
|
Power Required
|
Total Weight
|
|
|
CMH
|
CFM
|
Pa
|
KW
|
VAC/Φ/Hz
|
Kg
|
|
|
BryShield-100
|
170
|
100
|
100
|
0.19
|
230/1/50/60
|
20
|
|
BryShield-250
|
425
|
250
|
100
|
0.21
|
230/1/50/60
|
30
|
Humidity can be effectively controlled by installing Bry-Air Dehumidifiers. To know more about dehumidifiers, visit https://www.bryair.com/products-solutions/desiccant-dehumidifiers/.
Standard variants of BryShield are available in 100 and 250 CFM.
For a small server room, Install BryShield. It eliminates corrosive gases such as SOx, NOx, Cl2, etc., dust and other airborne contaminants effectively. It is available in the size of 100 and 250 CFM. If you are looking for a solution of high capacity, please refer to other solutions mentioned on the Bry-Air Gas Phase Filtration Systems.
BryShield system is designed to be compact and ceiling-mounted, making it relatively easy to install. However, there are some general installation requirements to consider:
1. Ceiling Space: Ensure that you have adequate ceiling space to accommodate the BryShield unit. It should fit into the false ceiling like a cassette AC.
2. Access to Contaminant Sources: Ideally, the BryShield system should be installed in a location that allows it to effectively capture and filter contaminants. Consider proximity to pollutant sources.
3. Electrical Connection: Ensure there is a power source nearby for electrical connections.
4. Ventilation: Adequate ventilation is essential to circulate the filtered air effectively. Ensure that the room has proper ventilation to facilitate this.
5. Mounting: Proper mounting of the system is crucial. Follow the manufacturer’s guidelines and recommendations for ceiling suspension.
6. Maintenance Access: Leave enough space for easy access when maintenance or filter replacement is required.
7. Compliance: Ensure that the installation complies with local regulations and safety standards.
Bry-Air Airgineers® consider all the parameters for precise installation of BryShield.
BryShield MCU series uses Honeycomb Chemical Filters (DRISORB™), which typically last over a year before needing replacement. However, the actual lifespan can vary depending on factors like the level of contamination and usage conditions. Regular maintenance and filter replacement are essential to ensure optimal performance and protection for electronic equipment.
Yes, the BryShield MCU series has maintenance requirements to ensure its continued effectiveness. Regular maintenance includes replacing the Honeycomb Chemical Filters (DRISORB™) as needed, typically over a year, depending on usage conditions. Additionally, cleaning or replacing pre-filters, if present, and inspecting the unit for any signs of damage or wear are part of the maintenance routine. Maintenance schedules should be followed to keep the system operating efficiently and to protect electronic equipment from gaseous and particulate contaminants.
BryShield system, which uses Honeycomb Chemical Filters (DRISORB™), is highly efficient in removing gaseous contaminants. These filters are designed to capture and neutralize toxic gases effectively, including NO2, VOCs, Cl2, H2S, SOx, and more. The filters comply with ASHRAE 145.2 and ISO 1155-2 standards. The efficiency of the system in removing these contaminants is notably high, providing clean and safe air for sensitive electronic equipment in environments like small server rooms, control rooms, and electronic equipment rooms. Specific efficiency percentages may vary depending on the type and concentration of contaminants, but Honeycomb Chemical Filters are known for their exceptional performance in gas phase filtration.
