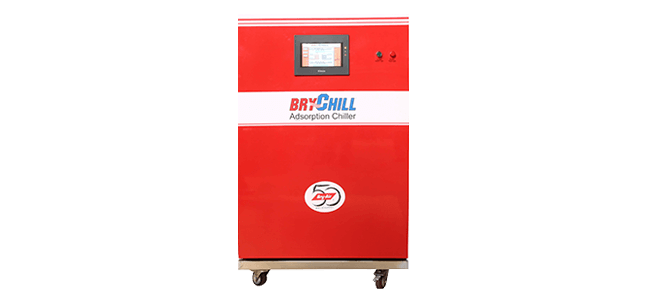

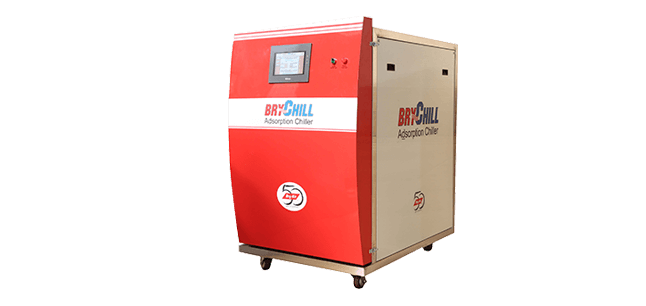

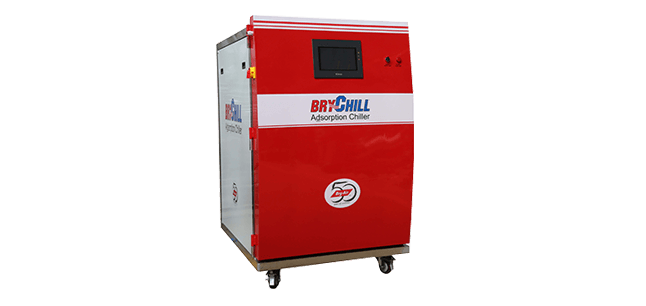

BryChillTM Adsorption Chiller
EnergySmart Cooling using Waste Heat (ranging from 11 kW to 35 kW)
Our Airgineers Can Help You Select The Right Product!
Contact Us
EnergySmart Cooling using Waste Heat (ranging from 11 kW to 35 kW)
Our Airgineers Can Help You Select The Right Product!
Contact Us
Compact in size and modular
Low maintenance
Green refrigerant (water)
Low energy consumption
Bry-Air’s BryChill Adsorption Chillers are based on an advanced green technology using inert Silica Gel (adsorbent) and Water (refrigerant) pair. It is a first ever product launched in India to tap the abundant low grade waste heat available in process industries and use it for process cooling or air-conditioning (HVAC) systems.
This eco-friendly solution cuts down CO2 emission and reduces energy expenses.
BryChill can be stacked as modules as shown below:
Bry-Air has the latest broadest spectrum of Adsorption Chillers available in the world. The Bry-Air Adsorption Chiller is available in the range of 11 kW to 35 kW (3.1 TR to 335 TR) and is being manufactured in India.
Bry-Air Adsorption Chiller uses advance green technology (silica gel – water pair) to help cut cooling costs up to 99%. It harnesses the waste heat or solar heat available in abundance across varied process industries and solar plants for the low cost process cooling and air-conditioning.
Adsorption Chillers can be used for Waste Heat Utilisation through Adsorption in:
The principle of Adsorption works with the interaction of gases and solids. With adsorption chilling, the molecular interaction between the solid and the gas allows the gas to be adsorbed into the solid.
The Adsorption chamber of the chiller is filled with solid material, special silica gel BRYSORB 200, eliminating the need for moving parts and eliminating the noise associated with those moving parts.
The silica gel creates an extremely low humidity condition that causes the water refrigerant to evaporate at a low temperature. As the water evaporates in the evaporator, it cools the chilled water.
The Adsorption Chiller has four chambers: an evaporator, a condenser and two Adsorption chambers. All four chambers are operated at nearly a full vacuum.
